Sine waves in PostScript

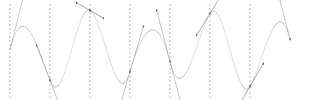

The following images illustrate how the step size can be varied to generate different Bézier approximations. The step size parameter should not be more than pi/2 radians (or you get results like this).

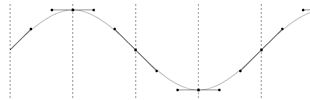

Step = pi/2 radian
Sine wave, step = pi/2 radians

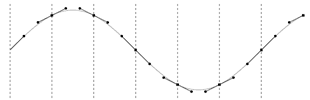

Step = pi/3 radian
Sine wave, step = pi/3 radians

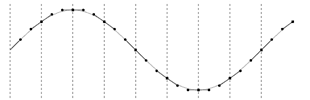

Step = pi/4 radian
Sine wave, step = pi/4 radians
(This approximation should be good enough for most purposes. The PostScript source for this annotated diagram is here.)

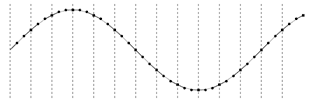

Step = pi/6 radian
Sine wave, step = pi/6 radians

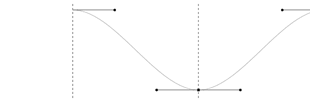

As a parting thought, it's possible to get a decent approximation with a step as large as pi radians, by shifting the phase by pi/2:
Sine wave, step = pi/6 radians
(Code for this is here.)
